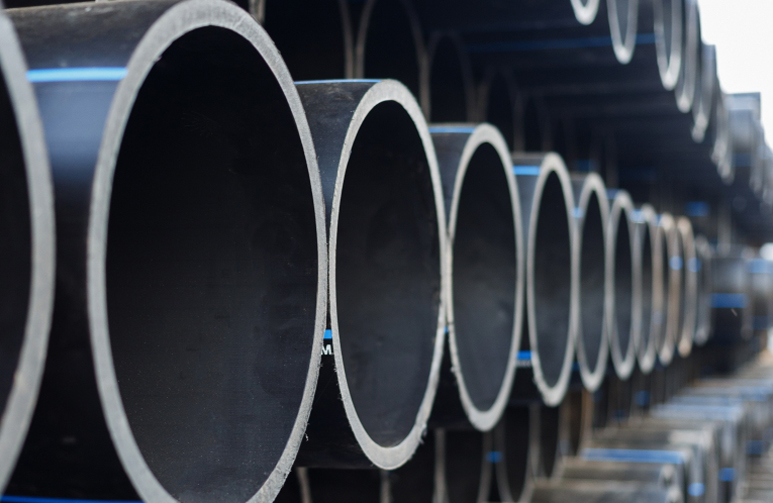

HDPE Pipes

  • Lightweight

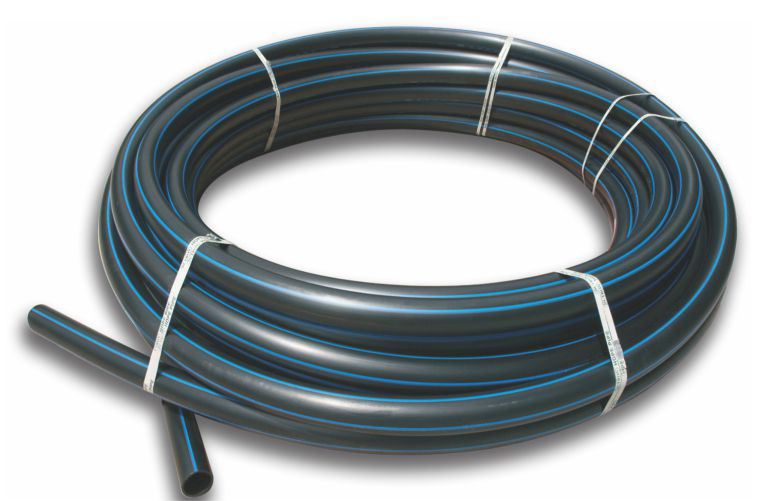

  • Flexible – pipes up to 140 mm diameter available in coil form
  • Excellent resistance to stress cracking and long term stress crack propagation
  • Can be safely used down to -40°C
  • Chemically resistant to most corrosive chemicals, acids and alkalies
  • Abrasion resistant
  • All types of fabricate fittings for butt welding available
Add to Wishlist
Add to wishlist
SKU: HDPE2388 Category:
Description

IS 4984:1995 – Material Grade PE 63

(All Dimensions in mm) Wall Thickness of pipes for Pressure Rating of
O.D PN 2.5 PN 4 PN 6 PN 8 PN 10 PN 12.5 PN 16
Min Max Min Max Min Max Min Max Min Max Min Max Min Max
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15)
20 – – – – – – – – 2.3 2.8 2.7 3.2 3.4 4.0
25 – – – – – – 2.3 2.8 2.8 3.3 3.4 4.0 4.2 4.9
32 – – – – 2.3 2.7 3.0 3.5 3.6 4.2 4.4 5.0 5.4 6.2
40 – – 2.0 2.4 2.8 3.3 3.7 4.3 4.5 5.1 5.5 6.2 6.7 7.6
50 – – 2.4 2.9 3.5 4.1 4.6 5.3 5.6 6.4 6.8 7.7 8.4 9.5
63 2.0 2.4 3.0 3.5 4.4 5.1 5.8 6.6 7.0 7.9 8.6 9.6 10.5 11.8
75 2.3 2.7 3.6 4.2 5.3 6.0 6.9 7.8 8.4 9.4 10.2 11.4 12.5 14.0
90 2.8 3.2 4.3 5.0 6.3 7.2 8.2 9.3 10.0 11.2 12.2 13.6 15.0 16.7
110 3.4 3.9 5.3 6.0 7.7 8.7 10.0 11.2 12.3 13.7 14.9 16.6 18.4 20.5
125 3.8 4.4 6.0 6.8 8.8 9.4 11.4 12.8 13.9 15.5 16.9 18.8 20.9 23.2
140 4.3 4.9 6.7 7.6 9.8 11.0 12.8 14.3 15.6 17.4 19.0 21.1 23.4 26.0
160 4.9 5.6 7.7 8.6 11.2 12.5 14.6 16.3 17.8 19.8 21.7 24.0 26.7 29.6
180 5.5 6.2 8.6 9.7 12.6 14.1 16.4 18.3 20.0 22.2 24.4 27.0 30.0 33.2
200 6.1 6.9 9.6 10.7 14.0 15.6 18.2 20.3 22.3 24.7 27.1 30.0 33.4 37.0
225 6.9 7.7 10.8 12.0 15.7 17.5 20.5 22.8 25.0 27.7 30.5 33.7 37.5 41.0
250 7.6 8.6 11.9 13.3 17.5 19.4 22.8 25.3 27.8 30.8 33.8 37.4 41.7 46.1
280 8.5 9.6 13.4 14.9 19.6 21.7 25.5 28.3 31.2 34.5 37.9 41.9 46.7 51.6
315 9.6 10.7 15.0 16.7 22.0 24.4 28.7 31.8 35.0 38.7 42.6 47.1 52.5 58.0
355 10.8 12.1 16.9 18.8 24.8 27.5 32.3 35.8 39.5 43.7 48.0 53.0 59.2 65.4
400 12.2 14.2 19.1 22.1 28.0 32.3 36.4 42.1 44.5 51.4 54.1 62.4 – –
450 13.7 15.9 21.5 25.0 31.4 36.3 41.0 47.4 50.0 57.7 – – – –
500 15.2 17.7 23.9 27.6 34.5 40.4 45.5 52.6 55.6 64.1 – – – –
560 17.0 19.8 26.7 30.9 39.1 45.2 51.0 58.9 – – – – – –
630 19.1 22.2 30.0 34.7 44.0 50.8 57.3 66.1 – – – – – –
710 21.6 25.0 33.9 39.1 49.6 57.2 – – – – – – – –
800 24.3 28.1 38.1 44.1 55.9 64.4 – – – – – – – –
900 27.3 31.6 42.9 49.9 – – – – – – – – – –
1000 30.3 35.1 47.7 55.0 – – – – – – – – – –
IS 4984:1995 – Material Grade PE 80
(All Dimensions in mm) Wall Thickness of pipes for Pressure Rating of
O.D PN 2.5 PN 4 PN 6 PN 8 PN 10 PN 12.5 PN 16
Min Max Min Max Min Max Min Max Min Max Min Max Min Max
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15)
20 – – – – – – – – – – 2.3 2.7 2.8 3.3
25 – – – – – – – – 2.3 2.7 2.8 3.3 3.5 4.0
32 – – – – – – 2.4 2.9 3.0 3.4 3.6 4.2 4.5 5.1
40 – – – – 2.3 2.7 3.0 3.5 3.7 4.3 4.5 5.1 5.6 6.3
50 – – 2.3 2.8 2.9 3.4 3.8 4.4 4.6 5.3 5.6 6.4 6.9 7.8
63 – – 2.5 3.0 3.6 4.2 4.7 5.4 5.8 6.6 7.0 7.9 8.7 9.8
75 – – 2.9 3.4 4.3 4.9 5.6 6.4 6.9 7.8 8.4 9.4 10.4 11.6
90 2.3 2.8 3.5 4.1 5.1 5.8 6.7 7.6 8.2 9.3 10.0 11.2 12.5 16.9
110 2.7 3.2 4.3 5.0 6.3 7.1 8.2 9.3 10.0 11.2 12.3 13.8 15.2 16.9
125 3.1 3.7 4.9 5.6 7.1 8.0 9.3 10.5 11.4 12.8 13.9 15.5 17.3 19.2
140 3.5 4.1 5.4 6.2 8.0 9.0 10.4 11.7 12.8 14.3 15.6 17.4 19.4 21.5
160 4.0 4.6 6.2 7.1 9.1 10.2 11.9 13.3 14.6 16.3 17.8 19.8 22.1 24.5
180 4.4 5.1 7.0 7.9 10.2 11.5 13.4 15.0 16.4 18.3 20.0 22.2 24.9 27.6
200 4.9 5.6 7.7 8.7 11.4 12.7 14.9 16.6 18.2 20.3 22.3 24.7 27.6 30.6
225 5.5 6.3 8.7 9.8 12.8 14.3 16.7 18.6 20.5 22.8 25.0 27.7 31.1 34.4
250 6.1 7.0 9.7 10.9 14.2 15.8 18.6 20.7 22.8 25.3 27.8 30.8 34.5 38.2
280 6.9 7.8 10.8 12.1 15.9 17.7 20.8 23.1 25.5 28.3 31.2 34.5 38.7 42.7
315 7.7 8.7 12.2 13.7 17.9 20.0 23.4 26.0 28.7 31.8 35.0 38.7 43.5 48.0
355 8.7 9.8 13.7 15.3 20.1 22.3 26.3 27.2 32.3 35.8 39.5 43.6 49.0 54.1
400 9.8 11.5 15.4 18.0 22.7 26.3 29.7 34.4 36.4 42.1 44.5 51.4 55.2 63.7
450 11.0 12.9 17.4 20.3 25.5 29.5 33.4 38.7 41.0 47.4 50.0 57.7 – –
500 12.2 14.3 19.3 22.4 28.4 32.8 37.1 42.9 45.5 52.5 55.6 64.1 – –
560 13.7 16.0 21.6 25.1 31.7 36.7 41.5 58.0 51.0 58.8 – – – –
630 15.4 18.0 24.3 28.2 35.7 41.3 46.7 54.0 57.3 66.1 – – – –
710 17.4 20.3 27.4 31.8 40.2 46.5 52.6 60.7 – – – – – –
800 19.6 22.2 30.8 35.7 45.3 52.3 – – – – – – – –
900 22.0 25.5 34.7 40.2 51.0 58.8 – – – – – – – –
1000 24.2 28.3 38.5 44.5 56.7 65.3 – – – – – – – –

IS 4984:1995 – Material Grade PE 100

(All Dimensions in mm) Wall Thickness of pipes for Pressure Rating of
O.D PN 6 PN 8 PN 10 PN 12.5 PN 16
Min Max Min Max Min Max Min Max Min Max
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
20 – – – – – – – – 2.3 2.7
25 – – – – – – 2.3 2.7 2.9 3.3
32 – – – – 2.4 2.8 2.9 3.4 3.7 4.2
40 – – 2.4 2.9 3.0 3.5 3.7 4.2 4.6 5.2
50 2.3 2.8 3.0 3.5 3.7 4.3 4.6 5.2 5.7 6.4
63 2.9 3.4 3.8 4.4 4.7 5.3 5.8 6.5 7.1 8.1
75 3.5 4.1 4.5 5.2 5.6 6.3 6.8 7.7 8.5 9.6
90 4.1 4.8 5.4 6.2 6.7 7.5 8.2 9.2 10.2 11.4
110 5.0 5.7 6.6 7.5 8.1 9.1 10.0 11.2 12.4 13.9
125 5.7 6.5 7.5 8.5 9.2 10.4 11.3 12.7 14.1 15.7
140 6.4 7.3 8.4 9.5 10.3 11.6 12.7 14.1 15.8 17.6
160 7.3 8.3 9.6 10.8 11.8 13.2 14.5 16.1 18.1 20.1
180 8.2 9.3 10.8 12.1 13.3 14.8 16.3 18.1 20.3 22.6
200 9.1 10.3 12.0 13.4 14.8 16.4 18.1 20.1 22.6 25.0
225 10.3 11.6 13.5 15.1 16.6 18.4 20.4 22.6 25.4 28.1
250 11.4 12.8 15.0 16.7 18.4 20.5 22.6 25.1 28.2 31.2
280 12.8 14.3 16.8 18.7 20.6 22.9 25.3 28.0 31.6 35.0
315 14.1 16.1 18.9 21.0 23.2 25.7 28.5 31.5 35.5 39.3
355 16.2 18.1 21.2 23.6 26.1 29.0 32.1 35.5 40.0 44.2
400 18.2 21.2 23.9 27.7 29.5 34.1 36.1 41.8 45.1 52.1
450 20.5 23.8 26.9 31.2 33.1 38.3 40.7 47.0 50.7 58.6
500 22.8 26.5 29.9 34.6 36.8 42.5 45.2 2.1 56.4 65.0
560 25.5 29.6 33.5 38.8 41.2 47.6 50.6 58.4 – –
630 28.7 33.3 37.7 43.6 46.8 53.6 56.9 65.6 – –
710 32.3 37.4 42.4 49.0 52.3 60.3 – – – –
800 36.4 42.1 47.8 55.2 58.9 67.9 – – – –
900 41.0 47.4 53.8 62.1 – – – – – –
1000 45.5 52.6 – – – – – – – –

IS 14333: 1996 – Material Grade PE 63

(All Dimensions in mm) Wall Thickness of pipes for Pressure Rating of
O.D PN 2.5 PN 4 PN 6 PN 8 PN 10 PN 12.5 PN 16
Min Max Min Max Min Max Min Max Min Max Min Max Min Max
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15)
63 – – 4.0 4.6 5.8 6.6 7.5 8.5 9.0 10.1 10.9 12.2 13.3 14.9
75 3.0 3.5 4.7 5.4 6.9 7.8 8.9 10.0 10.8 12.1 13.0 14.5 15.8 17.6
90 3.6 4.2 5.7 6.5 8.2 9.3 10.6 11.9 12.9 14.4 15.6 17.4 19.0 21.1
110 4.4 5.1 6.9 7.8 10.0 11.2 13.0 14.5 15.8 17.6 19.0 21.1 23.2 25.8
125 5.0 5.7 7.9 8.9 11.4 12.8 14.8 16.5 17.9 19.9 21.6 24.0 26.4 29.3
140 5.6 6.4 8.8 9.9 12.8 14.3 16.5 18.4 20.0 22.2 24.2 26.9 29.5 32.7
160 6.4 7.3 10.0 11.2 14.6 16.3 18.9 21.0 22.9 25.4 27.6 30.6 33.7 37.3
180 7.2 8.2 11.3 12.7 16.4 18.3 21.2 23.6 25.8 28.6 31.1 34.5 37.9 41.9
200 8.0 9.0 12.5 14.0 18.2 20.3 23.6 26.2 28.6 31.7 34.5 38.2 42.2 46.7
225 9.0 10.1 14.1 15.8 20.5 22.8 26.5 29.4 32.2 35.7 38.8 42.9 47.4 52.4
250 10.0 11.2 15.7 17.5 22.8 25.3 29.5 32.7 35.8 39.6 43.2 47.8 52.7 58.2
280 11.2 12.6 17.5 19.5 25.5 28.3 33.0 36.5 40.0 44.2 48.3 53.4 – –
315 12.6 14.1 19.7 21.9 28.7 31.8 37.1 41.1 45.0 49.7 54.4 60.1 – –
355 14.2 15.9 22.2 24.7 32.3 35.8 41.8 46.2 50.8 56.1 – – – –
400 16.0 18.6 25.0 29.0 36.4 42.1 47.1 54.4 57.2 66.0 – – – –
450 18.0 20.9 28.2 32.7 41.0 47.4 53.0 61.2 – – – – – –
500 20.0 23.2 31.3 36.2 45.5 52.6 – – – – – – – –
560 22.4 26.0 35.0 40.5 51.0 58.9 – – – – – – – –
630 25.2 29.2 39.4 45.6 57.3 66.1 – – – – – – – –
710 28.4 32.9 44.4 51.3 – – – – – – – – – –
800 32.0 37.0 40.0 57.7 – – – – – – – – – –
900 36.0 41.6 56.3 65.0 – – – – – – – – – –
1000 40.0 46.2 – – – – – – – – – – – –

IS 14333: 1996 – Material Grade PE 80

(All Dimensions in mm) Wall Thickness of pipes for Pressure Rating of
O.D PN 2.5 PN 4 PN 6 PN 8 PN 10 PN 12.5 PN 16
Min Max Min Max Min Max Min Max Min Max Min Max Min Max
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15)
63 – – 3.0 3.5 4.4 5.1 5.8 6.6 7.0 7.9 8.6 9.7 10.5 11.8
75 2.3 2.8 3.6 4.2 5.3 6.1 6.9 7.8 8.4 9.5 10.2 11.5 12.5 14.0
90 2.8 3.3 4.3 5.0 6.3 7.2 8.2 9.3 10.0 11.2 12.2 13.7 15.0 16.7
110 3.4 4.0 5.3 6.1 7.7 8.7 10.0 11.2 12.3 13.8 14.9 16.6 18.4 20.5
125 3.8 4.4 6.0 6.8 8.8 9.9 11.4 12.8 13.9 15.5 16.9 18.8 20.9 23.2
140 4.3 5.0 6.7 7.6 9.8 11.0 12.8 14.3 15.6 17.4 19.0 21.1 23.4 26.0
160 4.9 5.6 7.7 8.7 11.2 12.6 14.6 16.3 17.8 19.8 21.7 24.1 26.7 29.6
180 5.5 6.3 8.6 9.7 12.6 14.1 16.4 18.3 20.0 22.2 24.4 27.1 30.0 33.2
200 6.1 7.0 9.6 10.8 14.0 15.6 18.2 20.3 22.3 24.8 27.1 30.1 33.4 37.0
225 6.9 7.8 10.8 12.1 15.7 17.5 20.5 22.8 25.0 27.7 30.5 33.8 37.5 41.5
250 7.6 8.6 12.0 13.4 17.5 19.5 22.8 25.3 27.8 30.8 33.8 37.4 41.7 46.1
280 8.5 9.6 13.4 15.0 19.6 21.8 25.5 28.3 31.2 34.6 37.9 41.9 46.7 51.6
315 9.6 10.8 15.0 16.7 22.0 24.4 28.7 31.8 35.0 38.7 42.6 47.1 52.5 58.0
355 10.8 12.1 17.0 18.9 24.8 27.5 32.2 35.8 39.5 43.7 48.0 53.0 59.2 65.4
400 12.2 14.3 19.1 22.2 28.0 32.4 36.4 42.1 44.5 51.4 54.1 62.5 – –


450

 13.7 16.0 21.5 25.0 31.4 36.4 41.0 47.4 50.0 57.7 – – – –
500 15.2 17.7 23.9 27.7 34.9 40.4 45.5 52.6 55.6 64.2 – – – –
560 17.0 19.8 26.7 31.0 39.1 45.2 51.0 58.9 – – – – – –
630 19.1 22.2 30.0 34.7 44.0 50.8 57.3 66.1 – – – – – –
710 21.6 25.1 33.9 39.2 49.6 57.3 – – – – – – – –
800 24.3 28.2 38.1 44.1 55.9 64.5 – – – – – – – –
900 27.3 31.6 42.9 49.6 – – – – – – – – – –
1000 30.4 35.2 47.7 55.1 – – – – – – – – – –

IS 14333: 1996 – Material Grade PE 100

(All Dimensions in mm) Wall Thickness of pipes for Pressure Rating of
O.D PN 6 PN 8 PN 10 PN 12.5 PN 16
Min Max Min Max Min Max Min Max Min Max
(1) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15)
63 3.6 4.2 4.7 5.4 5.8 6.6 7.0 7.9 8.7 9.8
75 4.3 5.0 5.6 6.4 6.9 7.8 8.4 9.5 10.4 11.7
90 5.1 5.9 6.7 7.6 8.2 9.3 10.0 11.2 12.5 14.0
110 6.3 7.2 8.2 9.3 10.0 11.2 12.3 13.8 15.2 17.0
125 7.1 8.1 9.3 10.5 11.4 12.8 13.9 15.5 17.3 19.3
140 8.0 9.0 10.4 11.7 12.8 14.3 15.6 17.4 19.4 21.6
160 9.1 10.3 11.9 13.3 14.6 16.3 17.8 19.8 22.1 24.6
180 10.2 11.5 13.4 15.0 16.4 18.3 20.0 22.2 24.9 27.6
200 11.4 12.8 14.9 16.6 18.2 20.3 22.3 24.8 27.6 30.6
225 12.8 14.3 16.7 18.6 20.5 22.8 25.0 27.7 31.1 34.5
250 14.2 15.9 18.6 20.7 22.8 25.2 27.8 30.8 34.5 38.2
280 15.9 17.7 20.8 23.1 25.2 28.3 31.2 34.6 38.7 42.8
315 17.9 19.9 23.4 26.0 28.7 31.8 35.0 38.7 43.5 48.1
355 20.1 22.4 26.3 29.2 32.3 35.8 39.5 43.7 49.0 54.1
400 22.7 26.4 29.7 34.4 36.4 42.1 44.5 51.4 55.2 63.7
450 25.5 29.6 33.4 38.7 41.0 47.4 50.0 57.7 – –
500 28.4 32.9 37.1 42.9 45.5 52.6 55.6 64.2 – –
560 31.7 36.7 41.5 48.0 51.0 58.9 – – – –
630 35.7 41.3 46.7 54.0 57.3 66.1 – – – –
710 40.2 46.5 52.6 60.7 – – – – – –
800 45.3 52.3 – – – – – – – –
900 51.0 58.9 – – – – – – – –
1000 56.7 65.5 – – – – – – – –

Shipping & Delivery
Applications
'- Agriculture (column pipes for submersible pumps, suction and delivery of water, sprinkler systems, drip/lift irrigation etc.)
- Potable water supply.
- Conveying corrosive effluents of chemical and other process industries like petrochemicals, paper, dye stuff, rayon and fertilizers.
- Sewage and solid waste management pipe lines (IS 14333).
- Underground pipe lines.
- Cable duct lines.
- Radioactive Waste.
- Onshore and off shore pipe lines for dredging.
- DM/RODM plants.
- Air conditioning and ducting.
- Supply of compressed air.
- Chilled water circulation.
- MDPE pipes are used for carrying natural gas, LPG, CNG, bio gas etc. for domestic and industrial gas distribution.
- PP Pipes are used in applications where better mechanical property such as higher impact strength is required.
