QB Peripheral Pump

Performance Range

1. Max. Flow: 3.6m3/h
2. Max. Head: 60m

Application Limits

1. Suction head up to 8m
2. Liquid temperature up to +40℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 6bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5

Certificate

Applications Fields

1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.

Features

1. Small size, high pressure
2. Easy installation & maintain

Motor

1. Single-Phase 220V/50Hz
2. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
3. Protection: IP44
4. Insulation: Class B

Optional Available On Request

1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. Stainless steel insert
4. NSK bearing
5. Motor whose insulation class is F
6. Other voltage or frequency is 60Hz

Add to Wishlist
Add to wishlist
SKU: PUM8885 Categories: , , Tags: , , ,
Description

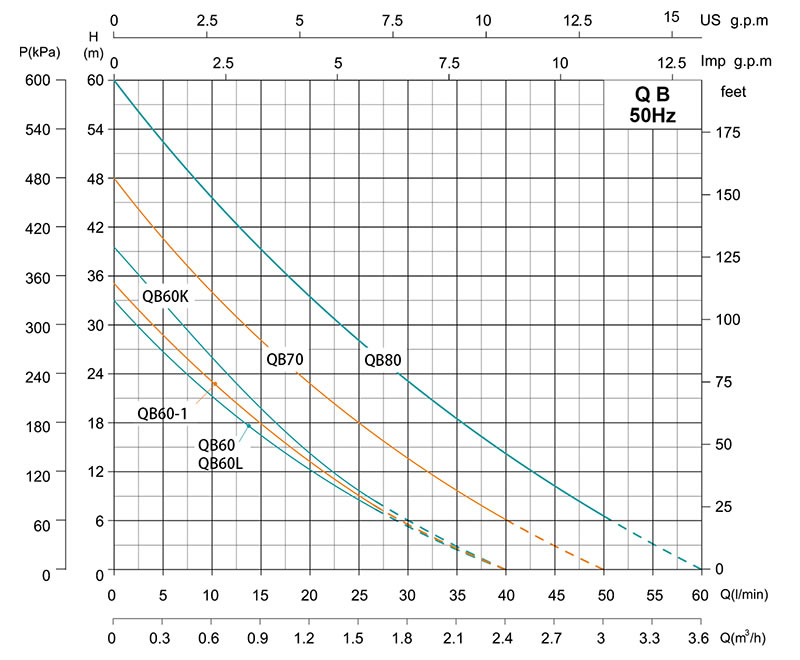

Performance Curve

3-8-peripheral-pump-04

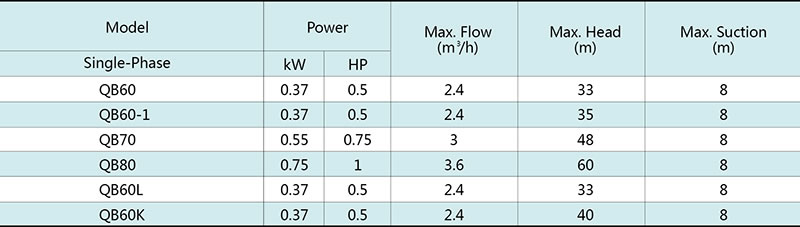

3-8-peripheral-pump-05
